Description
Series 1.5K Neo-Mag

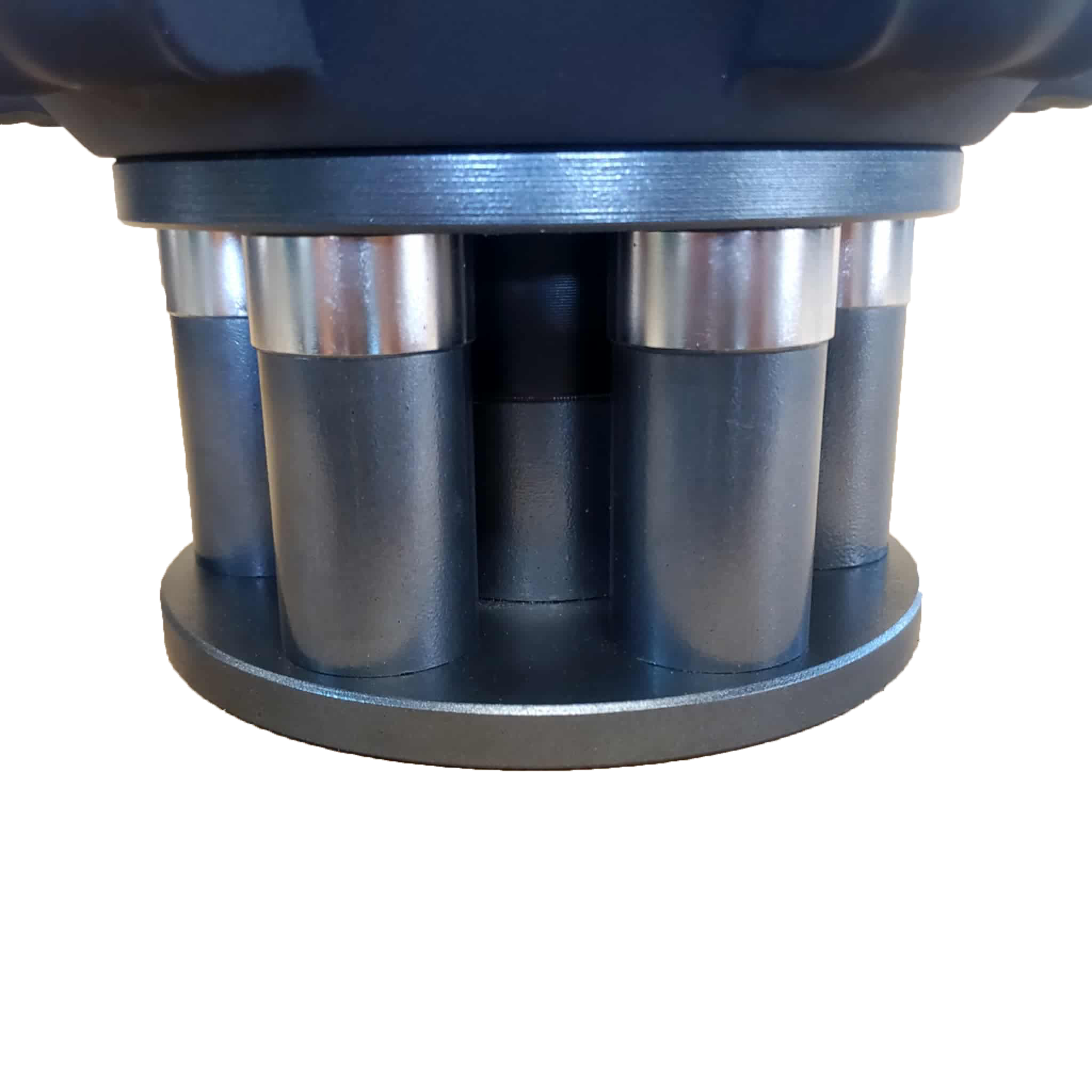

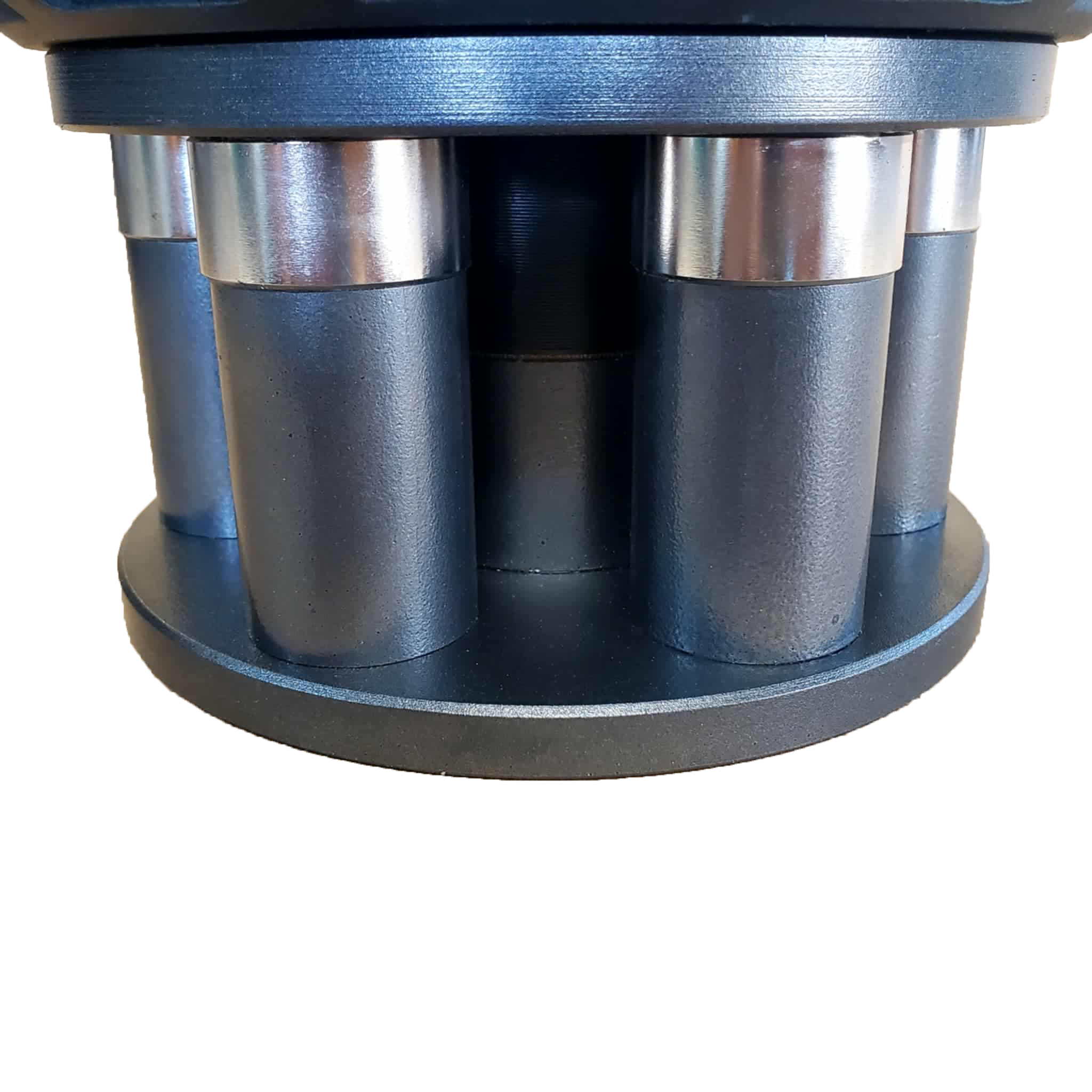

Rated at 1500 watts RMS and perfect for sealed boxes, ported boxes, and other applications. Custom designed and built by hand in the USA. All of our magnets are machined in-house using low carbon American steel. The new 2025 Series 1.5k’s are made with 6 large 1.5″ diameter pillar’s of N52 Neo-Magnets on low carbon posts increasing BL and providing greater sensitivity than previous models. The series 1.5k feature 3″ four-layer copper wire voice coils are wound on .010 tempered aluminum formers rated at 360°c (680°f). These are the highest temp coils available anywhere. The NEW 2025 series 1.5K’s are capable of over 3″ of peak to peak excursion. We are also now manufacturing all spiders in-house with our own Pierce Audio custom-built spider press. They are made with Nomex material pressed with phenolic resin. Series 1.5k Neo-Mag subwoofers deliver extreme bass in a variety of applications using only the highest innovative materials available. Sizes available include 12″, 15″, 18″ and 21″ All subwoofers are made to order so if you have any custom requirements just let us know and we’ll make it happen!
- NdFeB N52 Neodymium Magnet 6 pillar design.
- Low carbon American steel motor with 1.5″ pole vent and 0.5″ thick top plate.
- 10″ progressive red spider pack that are Nomex pressed with phenolic resin.
- Six-spoke long throw cast aluminum baskets.
- 3″ four-layer copper wire voice coil wound on a .010 tempered aluminum formers rated at 360°c (680°f).
- Dual 1 Ohm or Dual 2 Ohm voice coils (manufatured in-house).
- Heavy non-pressed spruce pulp cones with long strand Kevlar reinforcement or made to order Composite (Please contact us for more information).
- Multi-layer big roll foam surrounds stitched to the cone body for long throw and maximum cone area.
- No terminals here! —> 8 ga. direct-connect wire.
All subwoofers are made to order and ship within 4 to 6 weeks. Pierce Audio Inc. offers lifetime technical support on all subwoofers. Custom options are available and may add additional build time and costs to orders.
Please contact us for more information.
